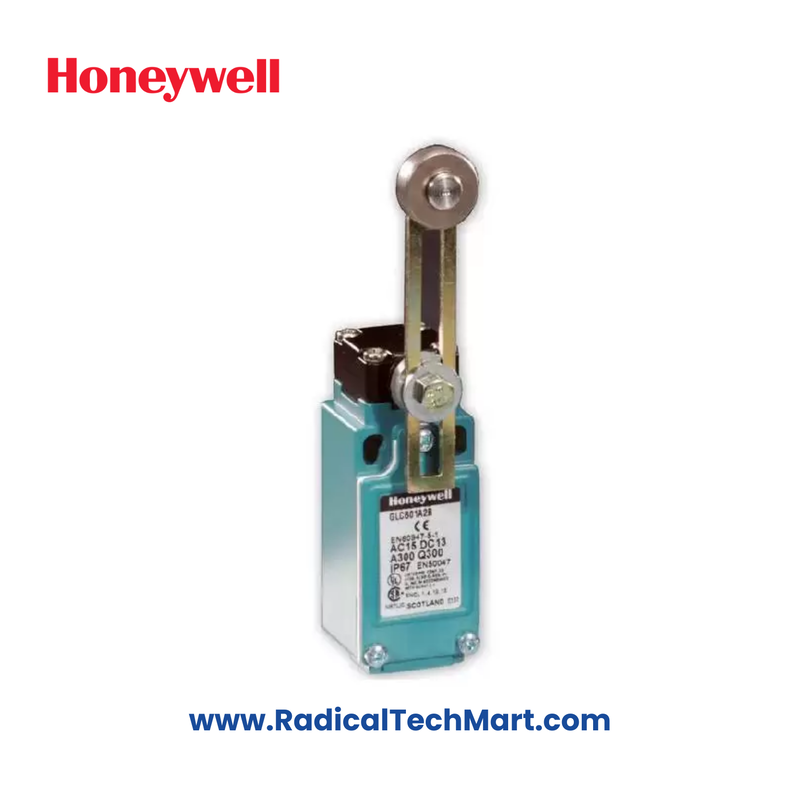

GLCB01A2B Honeywell Limit Switch

Product Description:

• Brand: Honeywell
• Model No.: GLCB01A2B

Conformance to Standards:

• CE
• EN 50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN 45545-2 (GLC/GLE)
• EN 61373

Housing Material:

• GLC Series and GLE Series: Electrostatic epoxy-coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options are available (please contact Honeywell representative)

Contact Options:

• GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
• GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material:

• Silver (standard)
• Gold-plated (for low-energy applications)

Technical Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
